Structural parts

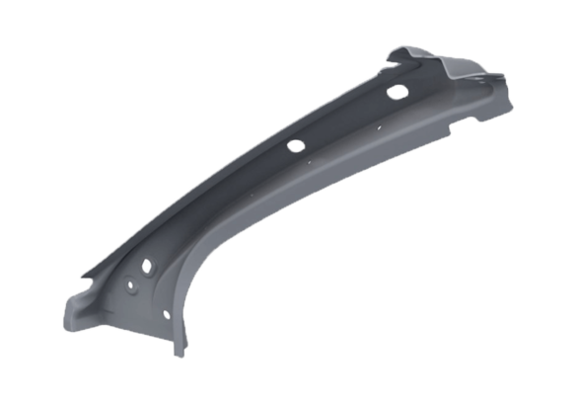

A-pillar/reinforcement

Features

MaterialSteel, high and ultra-high strength, dual-phase steel, tailored blanks Blank
Surface–
GeometryInteraction of material property, tolerance, geometry Step tool
Tool typeStep tool, transfer tool, double part production
Technology–
Press environmentKG Press, Transfer press

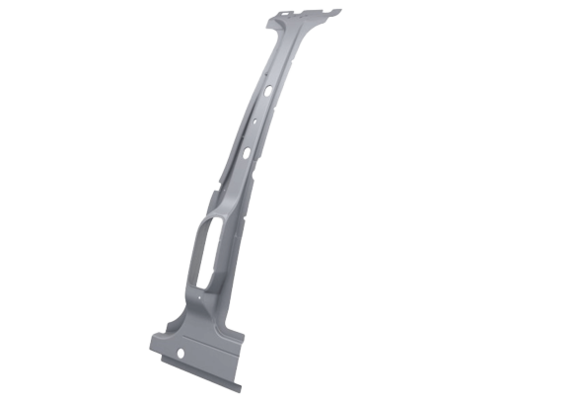

B-pillar/reinforcement

Features

MaterialSteel, high and ultra-high strength, dual-phase steel, tailored blanks Blank
Surface–
GeometryInteraction of material property, tolerance, geometry
Tool typeStep tool, transfer tool, double part production
Technology–
Press environmentGT Press, KG Press, Transfer Press

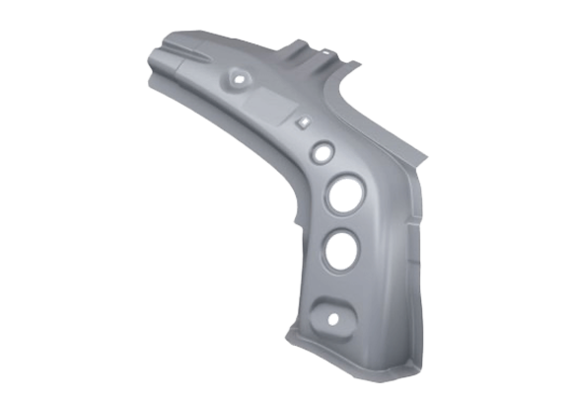

C-pillar/reinforcement

Features

MaterialSteel, high and ultra-high strength, dual-phase steel
Surface-
GeometryInteraction of material property, tolerance, geometry
Tool typeStep tool, transfer tool, double part production
Technology-
Press environmentKG Press, Transfer press

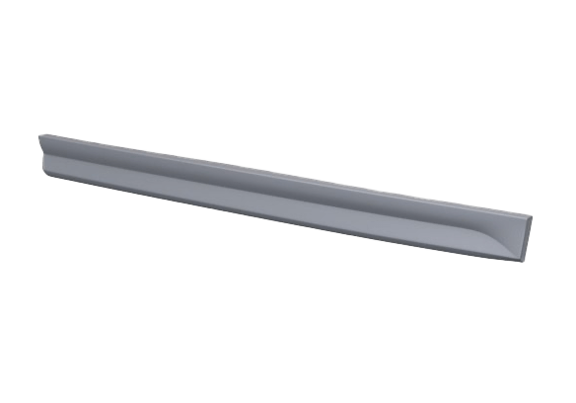

Sill

Features

MaterialSteel, high and ultra-high strength, dual-phase steel
Surface–
GeometryInteraction of material property, tolerance, geometry
Tool typeStep tool, transfer tool, double part production
Technology–
Press environmentGT Press, KG Press, Transfer Press

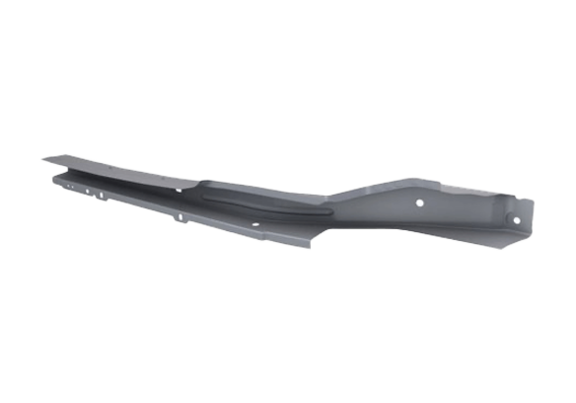

Side member

Features

MaterialHigh and ultra-high strength, Tailored Blanks Blank
Surface–
GeometryInteraction of material property, tolerance, geometry
Tool typeStep tool, transfer tool, double part production
Technology–
Press environmentLarge capacity suction press, GT press

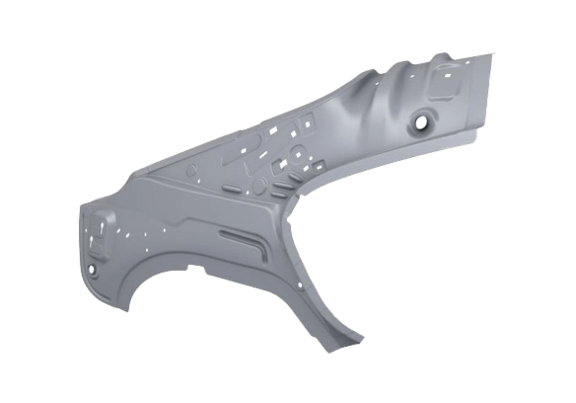

Side panel inside rear

Features

MaterialSteel
Surface–
Geometry–
Tool typeStep tool, transfer tool, double part production
TechnologySheet holder heating
Press environmentGT Press, KG Press, Transfer Press

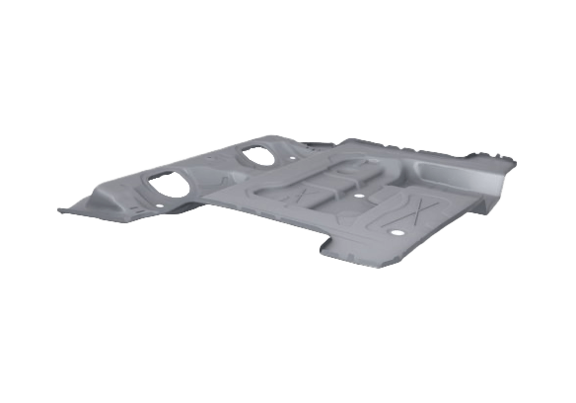

Floor

Features

MaterialSteel, Tailored Blanks Blank
Surface–
Geometry–
Tool typeStep mould, transfer mould, tandem production with e.g. wheelhouse
TechnologySheet holder heating
Press environmentGT press, KG press, large-capacity suction press

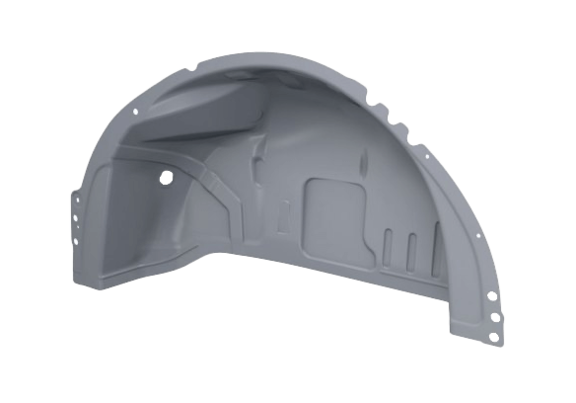

Wheelhouse

Features

MaterialSteel
Surface–
GeometryLarge differences in altitude
Tool typeStep mould, transfer mould, tandem production with e.g. floor or wheelhouse front / rear, part in part production
TechnologySheet holder heating
Press environmentGT press, KG press, large-capacity suction press
